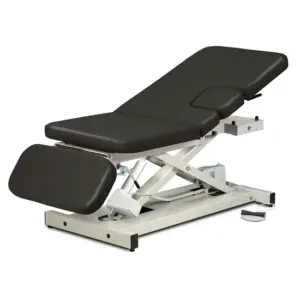

Clinton Imaging Table with Three-Section Top and Drop Window 80073

Description

Model #80073

Three-piece top with pneumatic adjustable backrest, manual footrest and window drop
Footrest is adjustable from either side and lowers up to 80º from flat position
Optional side rails & casters (see options below)
Trendelenburg/Reverse Trendelenburg plus or minus 15º
Easy-to-use hand control
All-welded base and top frame
Unobstructed base design
Dual column lift system adds rigidity
Paper dispenser, cutter and positioning straps included
Optional side rails and casters available
34″ wide model available
Model 80073: 500 lbs load capacity under normal use
Model 80073-X: 600 lbs load capacity under normal use

80073 Imaging Table with Three-Section Top and Drop Window	Length	Width	Height Range
80073 (overall)	76″	27″	21.5″ – 37.5″
Backrest	38″	27″
Footrest	12″	27″
Window	10″	10″
80073-X (overall)	76″	34″	21.5″ – 37.5″
Backrest	38″	34″
Footrest	12″	34″
Window	10″	10″

Model	80073, 80073-X
